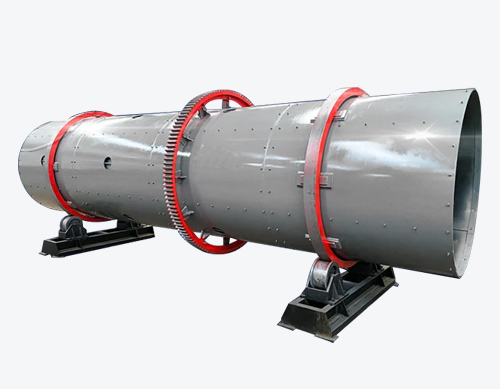

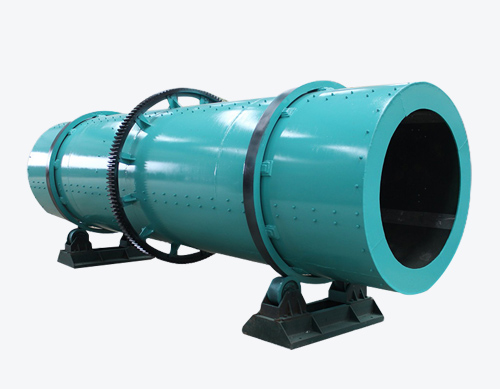

Drum granulator is a molding machine that can make materials into specific shapes. Drum granulator is one of the key equipment in the compound fertilizer industry, suitable for cold and hot granulation and large-scale production of high, medium and low concentration compound fertilizers. The main working method is granulation wet granulation. Through a certain amount of water or steam, the basic fertilizer is fully chemically reacted after the humidity is adjusted in the cylinder. Under certain liquid phase conditions, the rotation of the cylinder makes the material particles Generate extrusion force to agglomerate into balls.
For Pricing and Further Details
Drum Granulator Mechanics: The series drum granulator operates via belt and pulley driven by the main motor, transmitting power through a reducer to the driving shaft. A split gear on the driving shaft connects with a large gear ring fixed on the machine body, operating oppositely.
Granulation Process: Material is fed into the cylinder from the feed end, passing through its interior. Within the cylinder, a specialized structure facilitates the granulation process. Granules are then discharged through the port, enabling continuous mass production.
The drum granulator is one of the key equipments in the compound fertilizer industry. Suitable for cold and hot granulation and large-scale production of high, medium and low concentration compound fertilizers
The machine barrel is lined with a special rubber plate or acid-resistant stainless steel lining, which enables automatic scar removal and tumor removal, eliminating the traditional scraper device. This machine has the characteristics of high balling strength, good appearance quality, corrosion resistance, wear resistance, low energy consumption, long service life, and convenient operation and maintenance.
The machine's rotating part is supported by robust brackets, welded from medium carbon steel plates and channel steels for durability.
High-quality anti-corrosion materials are used for the support wheel to reduce friction with the rolling belt, extending machine lifespan.
The frame, employing casting integrated technology, ensures durability, with hanging hooks for convenient loading and unloading.
The transmission part of the whole granulator is optimized. The important work of the whole body is based on this. The transmission frame is welded with high-quality channel steel and has passed strict quality requirements. The main motor installed on the transmission frame and All reducers are ISO national inspection-free products with reliable quality. The motor drives the pulley, the V-belt, and the reducer to drive the main shaft to make the body work. The transmission reducer is used for the working part of the main shaft, and the nylon cancellation coupler is used to occlude and transmit the drive.
It is fixed on the body, meshes with the transmission pinion, and drives the body to work in opposite directions. It uses high-tech wear-resistant materials to make the machine have a longer service life.
It is fixed on both sides of the body to support the whole body.
The most important part of the whole granulator is the body part, which is welded by high-quality medium-carbon steel plates, with a built-in special rubber lining or acid-resistant stainless steel lining, which can automatically remove scars and tumors, cancel the traditional scraper device, and Through strict quality control and special process requirements, in order to achieve the purpose of this machine.
High Balling Strength
The balling rate is high, the particle size of the returned material is small, and it can be re-granulated.
Reasonable Structure
It is composed of a sturdy frame and national standard parts and has a longer service life.
High Working Efficiency
Fast drying, large output, low power consumption, saving time.
Easy to Operate and Maintain
Simple structure, convenient operation, saving time and effort.
| Model | Body Power（kw） | Spindle Power（kw） | Capacity（t/h） | Inatalled Size（mm） |
| TDZJZ-1060 | Y132M-4-7.5 | Y180M-4-18.5 | 3-5 | 7250*1250*1670 |
| TDZJZ-1660 | Y132M-4-11 | Y180M-4-22 | 5-8 | 7600*1800*2300 |
